Stivuitoare Perpetuum Power


Stivuitoare Perpetuum Power







Text Box: DISTRIBUITOR AUTORIZAT:


S - DF 22

Transpalet / Hand Pallet Truck

Capacitate / Capacity    2200 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 185 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 60 mm

Latime totala / Overall width 550 mm

Lungime furca / Fork length 1100 mm

S - ACY 25

Transpalet / Hand Pallet Truck

Capacitate / Capacity    2500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem    85 x 50 mm

Dimensiunile furcii / Size of fork 160 x 60 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm

S - ACY 30

Transpalet / Hand Pallet Truck

Capacitate / Capacity    3000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 50 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm

S - ACY 35

Transpalet / Hand Pallet Truck

Capacitate / Capacity    3500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem 80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 60 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm


Explosion 2: Ridicare rapidaS - CBGQL 20

Transpalet / Hand Pallet Truck

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 185 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 50 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm

S - ACL 20

Explosion 2: Furca lungaTranspalet / Hand Pallet Truck

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 60 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1500 mm

S - TWO 15

Transpalet omnidirectional / Side Roller Pallet Truck

Capacitate / Capacity    1500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 50 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm


S - ACS 20 H

Transpalet / Hand Pallet Truck- Industria alimentara

Explosion 2: INOXCapacitate / Capacity 2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 200 x 50 mm

Tandem / Tandem    80 x 70 mm

Dimensiunile furcii / Size of fork 160 x 60 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1150 mm


S - SLT 10

Transpalet tip foarfece / Scissor Lift Pallet Truck

Capacitate / Capacity    1000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 800 mm

Maner directie / Steering wheel 160 x 50 mm

Tandem / Tandem    78 x 60 mm

Dimensiunile furcii / Size of fork 200 x 50 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1170 mm

Greutate / Weight    127 kg

S - DLT 10

Transpalet electric tip foarfece / Electric Scissor Lift Pallet Truck

Capacitate / Capacity    1000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 800 mm

Maner directie / Steering wheel 160 x 50 mm

Tandem / Tandem    78 x 60 mm

Dimensiunile furcii / Size of fork 200 x 50 mm

Latime totala / Overall width 540 mm

Lungime furca / Fork length 1170 mm

Baterie / Battery    12 V; 55 Ah

Putere motor / Lifting motor power 1,1 kW

Greutate / Weight    127 kg

S - SAC 20 H

Transpalet cu cantar / Hand Pallet Truck with scale

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 88 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 180 x 50 mm

Tandem / Tandem    74 x 70 mm

Dimensiunile furcii / Size of fork 178 x 60 mm

Latime totala / Overall width 568 mm

Lungime furca / Fork length 1150 mm

Baterie / Battery    12 V; 5 Ah

S - SAC 20 HP

Transpalet cu cantar si imprimanta / Hand Pallet Truck with scale and printer

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 88 mm

Inaltimea maxima a furcii / Max. fork height 200 mm

Maner directie / Steering wheel 180 x 50 mm

Tandem / Tandem    74 x 70 mm

Dimensiunile furcii / Size of fork 178 x 60 mm

Latime totala / Overall width 568 mm

Lungime furca / Fork length 1150 mm

Baterie / Battery    12 V; 5 Ah

Datorita rotilor mari si a distantei reglabile dintre furci, transpaletul poate transporta multiple tipuri de paleti.

Pentru o operare mai usoara manerul are trei pozitii: pentru ridicare, pentru coborare si pentru deplasare.

  S - CHPT

Transpalet pentru teren accidentat / Rough Terrain Truck

Capacitate / Capacity 2000 kg

Inaltimea minima a furcii / Min. fork height 80 mm

Inaltimea maxima a furcii / Max. fork height 150 mm

Lungime furca / Fork length    800 mm

Distanta dintre furci    240 - 680 mm

Latime furca / Fork width 100 mm

Distanta dintre rotile anterioare /

Width inside front wheels 1530 mm

Diametrul rotiilor anterioare / Front wheels diam. 437 mm

Diametrul rotiilor posterioare / Rear wheels diam. 270 mm

Lungime totala / Overall length 1200 mm

Inaltime totala / Overall height 1280 mm

Explosion 2: PENTRU TEREN
 ACCIDENTAT


S - PS 0485

S - PS 0412

S - PS 0415

Platforme elevatoare / Platform Stacker

Model    S - PS 0485 S - PS 0412 S - PS 0415

Capacitate / Capacity    400 kg 400 kg 400 kg

Inaltime maxima / Max. height (H) 955 mm 1425 mm 1725 mm

Inaltimea minima a platformei / Min. platform (H1) 85 mm 85 mm 85 mm

Inaltimea de ridicare / Lifting height (H2) 765 mm 1115 mm 1415 mm

Inaltimea maxima a platformei / Max. platform h. 850 mm 1200 mm 1500 mm

Latime maxima / Max. width (B) 600 mm 600 mm 600 mm

Lungime platforma / Platform length (P1) 650 mm 650 mm 650 mm

Latime platforma / Platform width (P2) 576 mm 576 mm 576 mm

Role directie / Steering rollers 127 x 40 mm 127 x 40 mm 127 x 40 mm

Role sarcina / Load rollers    75 x 40 mm 75 x 40 mm 75 x 40 mm

Greutate / Weight    75 kg 81 kg 91 kg




S - MS 10-16

Transpalet / Hand Stacker


Capacitate / Capacity    1000 kg

Centru de greutate / Load Center 550 mm

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 1600 mm

Latime reglabila a furcii / Fork adjust width 330-740 mm

Latime furca / Fork width    550 mm

Lungime furca / Fork length 1150 mm

Lungime totala / Overall length    1520 mm

Inaltime totala / Overall height 1980 mm

Latime totala / Overall width 820 mm

Roti anterioare / Front wheels 74 x 55 mm

Roti posterioare / Rear wheels 150 x 42 mm

Greutate / Weight    172 kg


S - MS 15-16

Transpalet / Hand Stacker

Capacitate / Capacity    1500 kg

Centru de greutate / Load Center 550 mm

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 1600 mm

Latime reglabila a furcii / Fork adjust width 550 mm

Latime furca / Fork width 150 mm

Lungime furca / Fork length 1050 mm

Lungime totala / Overall length    1520 mm

Inaltime totala / Overall height 1980 mm

Latime totala / Overall width 820 mm

Roti anterioare / Front wheels 74 x 55 mm

Roti posterioare / Rear wheels 150 x 42 mm

Greutate / Weight 220 kg

S - SFH 1025 A

S - SFH 1030 A

Transpalet / Hand Stacker

Model    S - SFH 1025 A S - SFH 1030 A

Capacitate / Capacity    1000 kg 1000 kg

Centru de greutate / Load Center 600 mm 600 mm

Inaltimea de ridicare / Lifting height 2500 mm 3000 mm

Lungime furca / Fork length 915 mm 915 mm

Raza minima de intoarcare / Min. turning r. 1650 mm 1650 mm

Latime exterioara furcii / Forks outer width 210 - 800 mm 210 - 800 mm

Latime interioara furcii / Forks inner width 10 - 600 mm 10 - 600 mm

Viteza de ridicare / Lifting speed < 16 < 16

Viteza de coborare / Lowering speed Reglabila / Adjustable

Lungime totala / Overall length 1480 mm 1480 mm

Latime totala / Overall width 1080 - 1360 mm 1080 - 1360 mm

Inaltime totala / Overall height 1770 mm 2020 mm

Roti anterioare / Front wheels 80 mm 80 mm

Roti posterioare / Rear wheels 150 mm 150 mm

Greutate / Weight    360 kg 385 mm

  • Catarg realizat din materiale cu rezistenta sporita.
  • Furci realizate prin forjare.
  • Manipulare usoara.

S - YTC

Transpalet pentru obiecte cilindrice / Barrel Stacker

Capacitate / Capacity    350 kg

Inaltimea de ridicare / Lifting height 1425 mm

Lungime totala / Overall length 1190 mm

Latime totala / Overall width 890 mm

Inaltime totala / Overall height 2020 mm

Greutate / Weight    155 kg

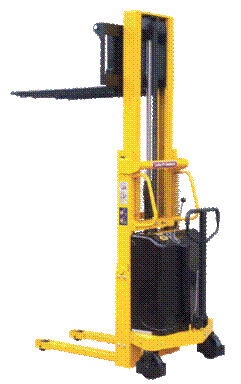

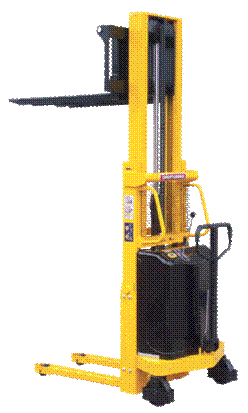

S - DYC 15-20

Transpalet semi-electric / Semi-electric Stacker

Capacitate / Capacity    1500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea de ridicare / Lifting height 2000 mm

Lungime furca / Fork length 1000 mm

Latime / Fork width    310 - 820 mm

Centru de greutate / Load center    400 mm

Raza de girare / Radius of gyration 1350 mm

Motor ridicare / Lifting motor 1,6 kW

Baterie / Battery    12/150 V/Ah

Incarcator / Charger    12/15 V/Ah

Lungime totala / Overall length 1760 mm

Latime totala / Overall width    810 mm

Inaltime totala / Overall height 1580 mm

Greutate / Weight    448 kg


S - DYC 15-25

Transpalet semi-electric / Semi-electric Stacker

Capacitate / Capacity    1500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea de ridicare / Lifting height 2500 mm

Lungime furca / Fork length 1000 mm

Latime / Fork width    310 - 820 mm

Centru de greutate / Load center    400 mm

Raza de girare / Radius of gyration 1350 mm

Motor ridicare / Lifting motor 1,6 kW

Baterie / Battery    12/150 V/Ah

Incarcator / Charger    12/15 V/Ah

Lungime totala / Overall length 1670 mm

Latime totala / Overall width    810 mm

Inaltime totala / Overall height 1830 mm

Greutate / Weight    470 kg

S - DYC 15-35

Transpalet semi-electric / Semi-electric Stacker

Capacitate / Capacity    1500 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea de ridicare / Lifting height 3500 mm

Lungime furca / Fork length 1000 mm

Latime / Fork width    310 - 820 mm

Centru de greutate / Load center 400 mm

Raza de girare / Radius of gyration 1450 mm

Motor ridicare / Lifting motor 1,6 kW

Baterie / Battery    12/150 V/Ah

Incarcator / Charger    12/15 V/Ah

Lungime totala / Overall length 1700 mm

Latime totala / Overall width    930 mm

Inaltime totala / Overall height 2330 mm

Greutate / Weight 515 kg

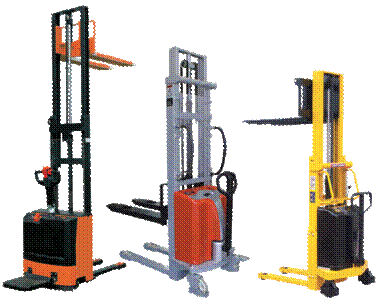

S - DYC 20-16

Transpalet semi-electric / Semi-electric Stacker

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea de ridicare / Lifting height 1600 mm

Lungime furca / Fork length 1000 mm

Latime / Fork width    310 - 820 mm

Centru de greutate / Load center    400 mm

Raza de girare / Radius of gyration 1350 mm

Motor ridicare / Lifting motor 1,6 kW

Baterie / Battery    12/150 V/Ah

Incarcator / Charger    12/15 V/Ah

Lungime totala / Overall length 1670 mm

Latime totala / Overall width    820 mm

Inaltime totala / Overall height 2060 mm

Greutate / Weight    388 kg

S - DYC 20-20

Transpalet semi-electric / Semi-electric Stacker

Capacitate / Capacity    2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea de ridicare / Lifting height 2000 mm

Lungime furca / Fork length 1000 mm

Latime / Fork width    310 - 820 mm

Centru de greutate / Load center    400 mm

Raza de girare / Radius of gyration 1350 mm

Motor ridicare / Lifting motor 1,6 kW

Baterie / Battery    12/150 V/Ah

Incarcator / Charger    12/15 V/Ah

Lungime totala / Overall length 1670 mm

Latime totala / Overall width    810 mm

Inaltime totala / Overall height 2580 mm

Greutate / Weight    472 kg

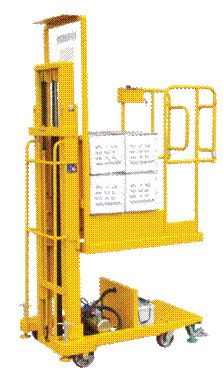

S - MHP 2/2.7

S - MHP 2/3.3

Platforma elevatoare hidraulica mobila / Mobile hydraulic picker

Model    S - MHP 2/2.7 S - MHP 2/3.3

Capacitate / Capacity 200 kg 200 kg

Inaltimea de ridicare / Lifting h. 2720 mm 3300 mm

Dimensiuni platforma / Pl. size 600x600 mm 600x640 mm

Dimensiuni exterioare 1300x760x1760 mm

/ Outer dimension    1300x840x2040 mm

Greutate / Weight 268 kg 313 kg

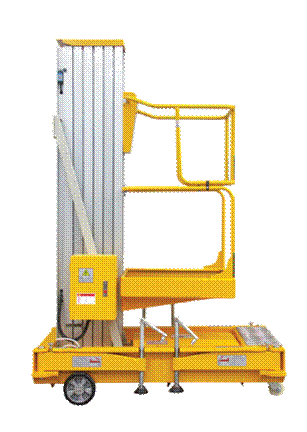

S-HB 108

Platforma elevatoare electrica mobila / Mobile electric picker

(cu un singur catarg / single mast)

Model    S-HB 108

Capacitate / Capacity 125 kg

Inaltimea de ridicare / Lifting h. 8000 mm

Dimensiuni platforma / Pl. size 630x640 mm

Dimensiuni exterioare / Outer dimension 1360x840x2120 mm

Greutate / Weight 340 kg

Tensiune alimentare / Input voltage 220-240 V

Putere motor / Engine power 0.75 kW



Capacitate neta de 125 kg

Inaltimea maxima a platformei: 8 m

Sursa de alimentare monofazata AC (optional)

Catarg din aluminiu dur

Buton pentru oprire de urgenta

Baterie ce nu necesita intretinere

Ridicare si coborare bine controlate de sistemul hidraulic

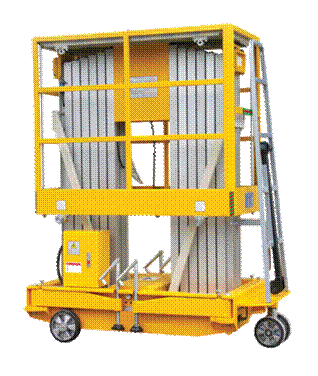

S-HB 308

Platforma elevatoare electrica mobila / Mobile electric picker

(cu catarg dublu / double mast)

Model    S-HB 308

Capacitate / Capacity 300 kg

Inaltimea de ridicare / Lifting h. 10000 mm

Dimensiuni platforma / Pl. size 1440x600 mm

Dimensiuni exterioare / Outer dimension 1750x840x1900 mm

Greutate / Weight    728 kg

Tensiune alimentare / Input voltage 220-240 V

Putere motor / Engine power 0.75 kW

Capacitate neta de 300 kg

Inaltimea maxima a platformei: 10 m

Sursa de alimentare monofazata AC (optional)

Catarg din aluminiu dur

Buton pentru oprire de urgenta

Baterie ce nu necesita intretinere

Ridicare si coborare bine controlate de sistemul hidraulic

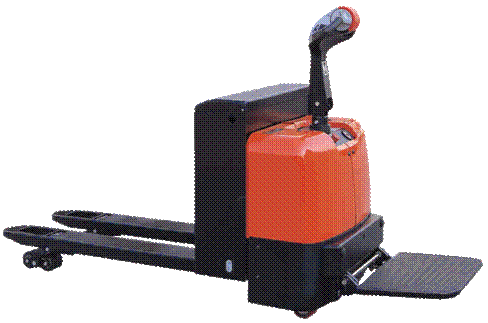

S - SL - LP 20

Transpalet electric / Power Pallet Truck

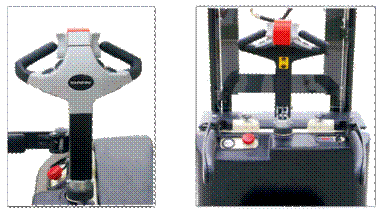

Sistemul de control electronic Nopolar este programabil, in functie de necesitatile operatiilor si de preferintele operatorului.

Deplasare lina, control precis al inaltimii, pentru a reduce riscurile deteriorarii materialelor transportate.

Limitator de inaltime reglabil.

Prevazut cu sistem de control electronic Curtis.




Capacitate / Capacity 2000 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Inaltimea maxima a furcii / Max. fork height 205 mm

Centru de greutate / Load Center    600 mm

Lungime furca / Fork length 1150 mm

Latime furca / Fork width    540 mm

Latime totala / Max. width 726 mm

Roti / Wheels no.    4/2+1X sau 2/2+1X Ns

Unghi girare / Swing angle 80 αs

Unghi de viraj / Steering angle    180 βs

Viteza de deplasare / Waking speed 5,5 - 6 km/h

Viteza de ridicare / Lifting speed    2,6 - 3,9 cm/s

Viteza de coborare / Lowering speed 2,0 - 2,6 cm/s

Putere motor ridicare / Lifting motor 0,8 kW

Putere motor deplasare / Traveling motor 1,5 kW

Baterie / Battery    24 V; 210 Ah

Greutate baterie / Battery weight    210 kg

Role sarcina / Load rollers 84 x 93 (84x70) mm

Role directie / Steering rollers 100 x 40 mm

Roata motoare / Driving wheel 230 x 75 mm

Panta maxima / Gradient 10 - 16 %

Sistem de franare / Brake    Electromagnetic

Sistem contol al vitezei / Speed controlling Electronic

Greutate / Weight    270 kg

Dimensiuni / Dimensions: X 310 mm

S 60 mm

X2 260 mm

Y 1245

Explosion 2: NOU L 1815 mm

B 160 mm

Wa 2025 mm

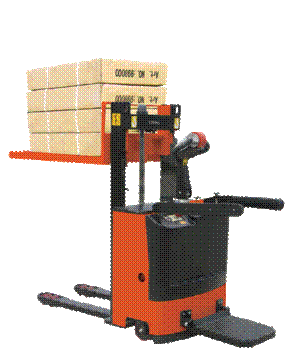

S - CL 12-12

Electrostivuitor / Power Stacker


Capacitate / Capacity    1200 kg

Inaltimea minima a furcii / Min. fork height 81 mm

Inaltimea de ridicare / Lifting height (h1) 1200 mm

Centru de greutate / Load center (q)    600 mm

Lungime furca / Fork length 1115 mm

Latime furca / Fork width 570 mm

Roti / Wheels    4/2+1X Ns

Unghi de girare / Swing angle    80 αs

Unghi de viraj / Steering angle 180 βs

Viteza de deplasare / Traveling speed 4,0 - 5,3 km / h

Viteza de ridicare / Lifting speed 91 - 128 mm / s

Viteza de coborare / Lowering speed    84 - 128 mm / s

Motor deplasare / Traveling motor 1,2 / 24 kW / V

Motor ridicare / Lifting motor 2,2 / 24 kW / V

Baterie / Battery    24 / 210 V / Ah

Greutate baterie / Battery weight 210 kg

Roti anterioare / Front wheels 80 x 70 mm

Roti posterioare / Rear wheels    150 x 54 mm

Roata directie / Steering wheel 250 x 78 mm

Inclinare maxima / Max. gradient    6 - 18 %

Sistem de franare / Brake Electromagnetic

Sistem contol al vitezei / Speed controlling Electronic

Transmisie / Transmission Angrenaje / Gears

Greutate / Weight    570 kg

Dimensiuni / Dimensions: X 428 mm

S 60 mm

X 285 mm

Y 1156 mm

L 1865 mm

N 180 mm

H2 1564 mm

H3 1564 mm

H4 1600 mm

Wa 1826 mm


S - CL 12-26

Electrostivuitor / Power Stacker

Capacitate / Capacity    1200 kg

Inaltimea minima a furcii / Min. fork height 81 mm

Ridicare libera / Free lift (h4) 230 mm

Inaltimea de ridicare / Lifting height (h1) 2600 mm

Centru de greutate / Load center (q) 600 mm

Lungime furca / Fork length 1120 mm

Latime furca / Fork width 570 mm

Roti / Wheels    4/2+1X Ns

Unghi de girare / Swing angle     80 αs

Unghi de viraj / Steering angle 180 βs

Viteza de deplasare / Traveling speed 4,0 - 5,3 km / h

Viteza de ridicare / Lifting speed    91 - 128 mm / s

Viteza de coborare / Lowering speed 84 - 128 mm / s

Motor deplasare / Traveling motor    1,2 / 24 kW / V

Motor ridicare / Lifting motor 2,2 / 24 kW / V

Baterie / Battery    24 / 210 V / Ah

Greutate baterie / Battery weight    210 kg

Roti anterioare / Front wheels 80 x 70 mm

Roti posterioare / Rear wheels 150 x 54 mm

Roata directie / Steering wheel    250 x 78 mm

Inclinare maxima / Max. gradient 6 - 12 %

Sistem de franare / Brake    Electromagnetic

Sistem contol al vitezei / Speed controlling Electronic

Transmisie / Transmission    Angrenaje / Gears

Greutate / Weight    837 kg

Dimensiuni / Dimensions: X 428 mm

S 60 mm

X 281 mm

Y 1156 mm

L 1865 mm

N 180 mm

H2 1800 mm

H3 2918 mm

B 170 mm

Wa 1826 mm

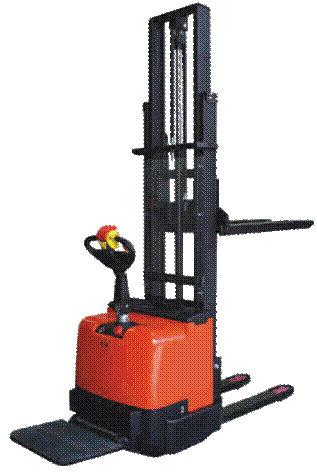

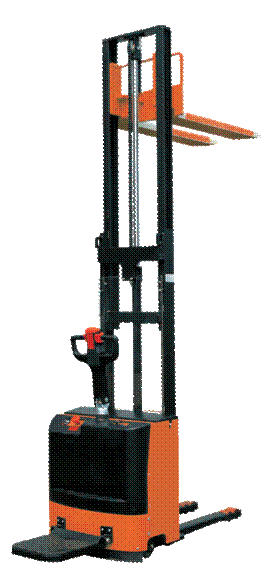

S - CL 12-32/SP

Electrostivuitor / Power Stacker

Capacitate / Capacity    1200 kg

Inaltimea minima a furcii / Min. fork height 85 mm

Ridicare libera / Free lift (h4) 150 mm

Inaltimea de ridicare / Lifting height (h1) 3200 mm

Centru de greutate / Load center (q)    600 mm

Lungime furca / Fork length 1150 mm

Latime furca / Fork width    575 mm

Roti / Wheels    4/4+1X Ns

Unghi de girare / Swing angle     80 αs

Unghi de viraj / Steering angle 180 βs

Viteza de deplasare / Traveling speed 5,0 - 5,5 km / h

Viteza de ridicare / Lifting speed 97 - 164 mm / s

Viteza de coborare / Lowering speed    120 - 128 mm / s

Motor deplasare / Traveling motor 1,5 / 24 kW / V

Motor ridicare / Lifting motor 2,2 / 24 kW / V

Baterie / Battery    24 / 210 V / Ah

Greutate baterie / Battery weight 210 kg

Roti anterioare / Front wheels 80 x 90 mm

Roti posterioare / Rear wheels 125 x 60 mm

Roata directie / Steering wheel    230 x 75 mm

Inclinare maxima / Max. gradient 6 - 12 %

Sistem de franare / Brake Electromagnetic

Sistem contol al vitezei / Speed controlling Electronic

Transmisie / Transmission    Angrenaje / Gears

Greutate / Weight    965 kg

Dimensiuni / Dimensions: X 385 mm

S 60 mm

X 260 mm

Y 1342 mm

L 1997 mm

N 180 mm

H2 2105 mm

H3 3675 mm

Wa 2010 mm

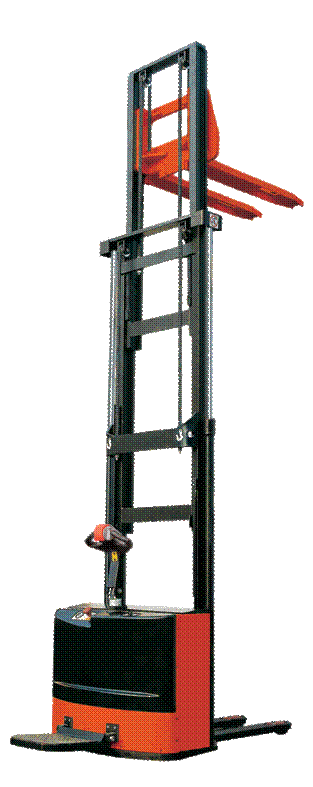

S - CG 16-46

Electrostivuitor / Power Stacker

Capacitate / Capacity    1600 kg

Inaltimea minima a furcii / Min. fork height 81 mm

Inaltimea de ridicare / Lifting height (h1) 4600 mm

Centru de greutate / Load center (q)    600 mm

Lungime furca / Fork length 1115 mm

Latime furca / Fork width 570 mm

Roti / Wheels    4/2+1X Ns

Unghi de girare / Swing angle    80 αs

Unghi de viraj / Steering angle 180 βs

Viteza de deplasare / Traveling speed 4,0 - 5,3 km / h

Viteza de ridicare / Lifting speed 120 - 150 mm / s

Viteza de coborare / Lowering speed    90 - 110 mm / s

Motor deplasare / Traveling motor 1,2 / 24 kW / V

Motor ridicare / Lifting motor 3 / 24 kW / V

Baterie / Battery    24 / 280 V / Ah

Greutate baterie / Battery weight 263 kg

Roti anterioare / Front wheels 80 x 70 mm

Roti posterioare / Rear wheels    150 x 54 mm

Roata directie / Steering wheel 250 x 78 mm

Inclinare maxima / Max. gradient    6 - 12 %

Sistem de franare / Brake Electromagnetic

Sistem contol al vitezei / Speed controlling Electronic

Transmisie / Transmission Angrenaje / Gears

Greutate / Weight    1367 kg

Dimensiuni / Dimensions: X 320 mm

S 60 mm

X 285 mm

Y 1310 mm

L 1915 mm

N 180 mm

H2 2100 mm

H3 5107 mm

Wa 2005 mm

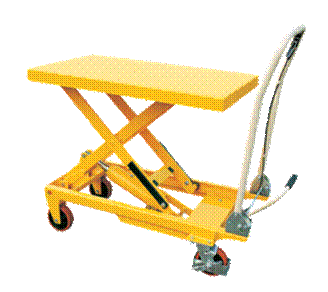

S TF 30

Masa elevatoare hidraulica / Hydraulic table truck

Model    S TF 30

Capacitate / Capacity 300 kg

Inaltimea maxima / Max. Height 880 mm

Inaltimea minima / Min. Height 285 mm

Dimensiuni masa / Table size 815x500x50 mm

Roti / Wheels    125x40 mm

Curse pedala pt. inaltime max. / < =27

Foot pedal cycles to max. height

Greutate / Weight    77 kg

Inaltime maner / Height of handle 990 mm


S TF 50

Masa elevatoare hidraulica / Hydraulic table truck

Model    S TF 50

Capacitate / Capacity 500 kg

Inaltimea maxima / Max. Height 880 mm

Inaltimea minima / Min. Height 285 mm

Dimensiuni masa / Table size 815x500x50 mm

Roti / Wheels    125x40 mm

Curse pedala pt. inaltime max. / < =27

Foot pedal cycles to max. height

Greutate / Weight    81 kg

Inaltime maner / Height of handle 990 mm


S TF 100

Masa elevatoare hidraulica / Hydraulic table truck

Model    S TF 100

Capacitate / Capacity 1000 kg

Inaltimea maxima / Max. Height 990 mm

Inaltimea minima / Min. Height 380 mm

Dimensiuni masa / Table size 1016x510x55 mm

Roti / Wheels    127x50 mm

Curse pedala pt. inaltime max. / < =82

Foot pedal cycles to max. height

Greutate / Weight    122 kg

Inaltime maner / Height of handle 980 mm

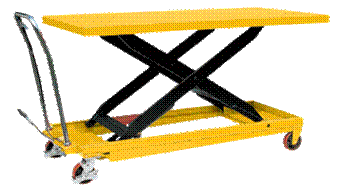

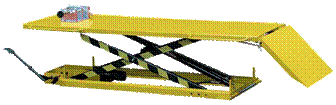

S TFD 80

Masa elevatoare hidraulica / Hydraulic table truck

Model    S TFD 80

Capacitate / Capacity 800 kg

Inaltimea maxima / Max. Height 1500 mm

Inaltimea minima / Min. Height 445 mm

Dimensiuni masa / Table size 1220x610 mm.

Roti / Wheels    127 mm

Curse pedala pt. inaltime max. / < =

Foot pedal cycles to max. height

Greutate / Weight    195 kg

Inaltime maner / Height of handle 1015 mm

S TG 100

Masa elevatoare hidraulica / Hydraulic table truck

Model    S TG 100

Capacitate / Capacity 1000 kg

Inaltimea maxima / Max. Height 1400 mm

Inaltimea minima / Min. Height 300 mm

Dimensiuni masa / Table size 2035x750 mm

Roti / Wheels    180x50 / 80x40 mm

Curse pedala pt. inaltime max. / < =200

Foot pedal cycles to max. height

Greutate / Weight 198 kg

Inaltime maner / Height of handle 1000 mm

S HTF-G

Masa elevatoare hidraulica / Hydraulic table truck


Model    S HTF-G

Capacitate / Capacity 1000 kg

Inaltimea maxima / Max. Height 760 mm

Inaltimea minima / Min. Height 82 mm

Dimensiuni masa / Table size 1450x1140 mm

Timp ridicare / Lifting Time 18 s

Viteza de ridicare / Lifting Speed 42 mm/s

Viteza coborare / Lowering Speed 48 mm/s

Putere motor / Engine Power 0,75 kW

Greutate / Weight 250 kg

S-TC 500 LONG

Masa elevatoare hidraulica / Hydraulic table truck


Model    S-TC 500 LONG

Capacitate / Capacity 500 kg

Inaltimea maxima / Max. Height 800 mm

Inaltimea minima / Min. Height 170 mm

Dimensiuni masa / Table size 2200x700 mm

Greutate / Weight    235 kg

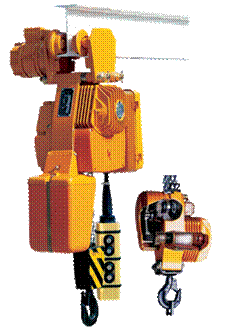

S-100 ET

S-200 ET

Troliu electric / Electric chain hoist

Model    S-100 ET S-200 ET

Capacitate / Capacity 1000 kg 2000 kg

Inaltimea de ridicare / Lifting h. 6500 mm 6000 mm

Viteza de ridicare / Lifting speed 4/1,2 4m/dk.

Numar coloane lant 2 2

/ No. of coulums of load chain

Greutate / Weight 81 kg 150 kg

Viteza dubla

Lant DIN 5684

Intrerupatoare limitatoare (2 bucati)

Frana mecanica

Design compact

Usor de intretinut si reparat

Montare si demontare usoara

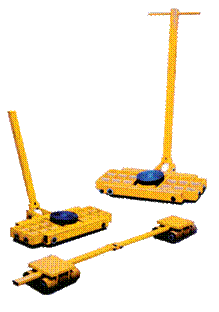

S-X4Y4

S-X8Y8

Troleu transport / Transport trolleys

Model    S-X4Y4 S-X8Y8

Capacitate / Capacity 8000 kg 16000 kg

Numar role / No.of rollers 4 8

Dimensiuni placa / Dim. of turnplate 140x120x160 200x160x180

Lungime maner / Lenght of handle 300-1000 mm 400-1300 mm

Greutate / Weight    kg 72 kg

Dimensiuni exterioare / Overall size 230x230x110 170x140x110

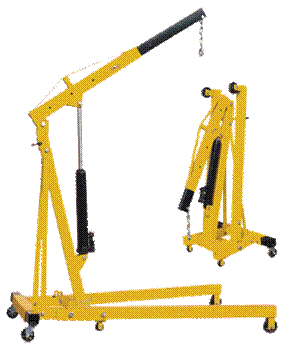

S SDJ

Macara de atelier / Shop crane

Model    S SDJ2

Capacitate / Capacity 500-2000 kg

Lungime brat / Boom length 960-1500 mm

Inaltime brat / Boom height 350-1840 mm

Greutate / Weight 92 kg

Text Box: ENDRESS GROUP ROMANIA Resita Bucuresti www.endress-group.ro Str. Fagarasului 21 Str. Izbiceni 102
office@endress-group.ro Telefon: 0040-255-227 825 Telefon: 0040-311-012 874
 Fax: 0040-255-227 828 Fax: 0040-311-012 873



PRODUSELE SILVERSTONE SUNT INTR-UN PROCES PERMANENT DE DEZVOLTARE SI PERFECTIONARE. DIN ACEST MOTIV, ENDRESS ISI REZERVA DREPTUL DE A MODIFICA FARA O ANUNTARE PREALABILA, DATELE ACESTOR LISTE.








Politica de confidentialitate





Copyright © 2021 - Toate drepturile rezervate

Afaceri


Asigurari
Birotica
Confectii
Industria lemnului
Turism


METODOLOGIA DE PROGNOZA A INVESTITIILOR
Finantarea strategica a firmei
PLANUL OPERATIONAL SI MANAGEMENTUL AFACERII
Lucrare de licenȚa administrarea afacerilor - contractele de cazare: roluri si aspecte particulare aplicatie practica la s.c. nito s.r.l
Managamentul operatiunilor de comert in cadrul ALBCHHERS Romania S.A.
Sistemul antreprenorial - practica si strategie
PLANUL FINANCIAR IMPORTANTA SI INDICATORI DE ANALIZA A EXPERIENTEI ANTERIOARE AFACERII
Paradisurile fiscale. Conditii, tipuri, motivatii.
MANAGEMENTUL AFACERILOR ECONOMICE INTERNATIONALE
Caracteristicele tipologice ale firmei
