» LUCRARE DE LABORATOR LA ARHITECTURA NAVALA - PROBA DE INCLINARI


LUCRARE DE LABORATOR LA ARHITECTURA NAVALA - PROBA DE INCLINARI


UNIVERSITATEA "DUNAREA DE JOS"

FACULTATEA DE NAVE

PROFIL C.N.



LUCRARE DE LABORATOR LA

ARHITECTURA NAVALA

PROBA DE INCLINARI

Proba de inclinari

  1. Caracteristicile navei:

Dimensiunile principale:

Lungimea intre perpendiculare: 45,05m;

Latimea maxima: 13,25m;

Inaltimea de constructie: 6,00m;

Pescajul: 4,80m.

Pozitia perpendicularelor:

  • Perpendiculara PP: FR5;
  • Perpendiculara PV: FR72;

Deplasamentul navei D

D = S mi = M; i I [1,n]; M = masa totala a navei

D = D0 + Dwt; D0 = masa navei goale complet echipate;

Dwt = masa totala a incarcaturii navei;

D0 = D + M- - M+;    M+ = masele in plus fata de jurnalul de greutati;

M- = masele in minus fata de jurnalul de greutati;

  1. Calculul valorilor hidrostatice:

Caracteristicile plutirii:

Tm = ( Tpv + Tpp ) / 2 = 4,459m;    Tm = pescajul mediu;

Tpv = pescajul PV;

Tpp = pescajul PP;

a = Tpv - Tpp = -0,444m; a = asieta navei;

jm = 0,270 < 0,50;    jm = unghiul mediu de inclinare;

Valori hidrostatice:

r = 1; (densitatea apei)

a1

d1

V1

dv1

a2

d2

V2

dv2

dV

V

D

unde: d1 = 4,45; d2 = 4,5;

Tm1 = 1504,7; Tm1 = 1496,2

Tm2 = 1527,3; Tm2 = 1519,0

  1. Proba de deplasament:

Valori masurate:

Pozitia plutirii:

Ecuatia dreptei medii :

x

y

Proba de inclinari :

Mi = Pbcosj;

Msj = Dhsinj;

tgj = Pb/Dh  => h = Pb/Dtgj;

Momente de inclinare :

MT = S Miyi (momentul total) ;

Mrel = MT - MT;    (momentul relativ) ;

Md = Mreli - Mreli-1

Pct.

A

Ya

B

Yb

C

Yc

D

Yd

MT

Mrel

Midef

4.2. Unghiuri de inclinare :

tgj y l

dtgj tgji tgji-1

P1 l P2 l2

Pct.

y

tgj

dtgj

Pct.

y

tgj

dtgj

tgj

Pct.

tgj1

tgj2

dtgj1

dtgj2

Pm

dPm

j0

dj0



Inaltimea metacentrica :

5.1. Pe medii:

h= Midef /dtgj

Pct.

Midef

dtgj

h

h

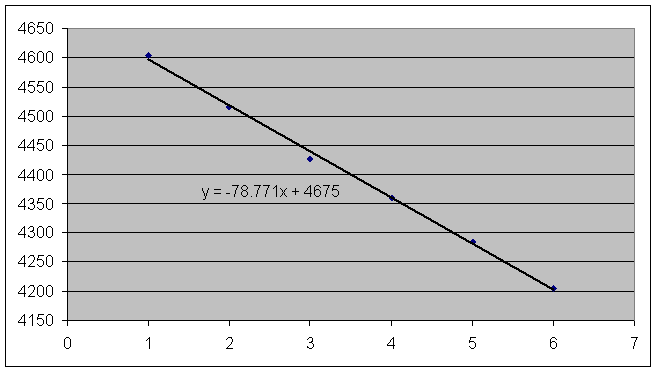

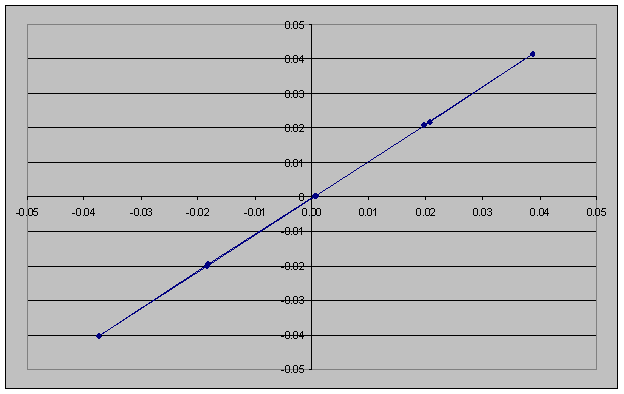

5.2. Regresie:

f=ax+b

a~h

Pct.

Mrel

j[rad]

Mrel/D[m]

D = rV = 1507.4984 tone

Determinarea centrului de greutate:

6.1. Coordonatele centrului de greutate ale navei la proba:

zG = zMT - h = 5.417-1.07 = 4.347m

xG = xB - (zG - zB)tgQ = 22.113- (4.347 - 2.2868)0.010869 = 22.09061m

yG = (zG - zB)tgjc = 0.008273m

6.2. Coordonatele centrului de greutate ale navei goale :

D D - M+ + M;

xG0 D xG - M+ xG+ + M- xG-)/D

yG0 D yG - M+ yG+ + M- yG-)/D

zG0 D zG - M+ zG+ + M- zG-)/D

MASE PLUS PE NAVA

Denumire

Mase[t]

x[m]

y[m]

z[m]

M*x

M*y

M*z

A

B

C

D

LIST COMP.

5 pers.

Steel Ladder

Caterpillar box



Bilge water

Pendulum 1

Pendulum 2

Cables & others

TOTAL

NR.TC

S[m]

Denumire

Mase[t]

x[m]

y[m]

z[m]

M*x

M*y

M*z

full

F.O. TANK P.S. IN

full

F.O. TANK S.B. IN

full

F.O. DAY TANK P.S.

full

F.O. DAY TANK S.B.

F.O. TANK C.L. AFT

full

W.B. AFT TANK P.S.

full

W.B. AFT TANK S.B.

full

F.O. TANK EMERG. GEN.

TOTAL

MASE PLUS -TANCURI

MASE MINUS PE NAVA

Denumire

Mase[t]

x[m]

y[m]

z[m]

M*x

M*y

M*z

Wires on Winches (PV)

Wires on Winches (PP)

ECR. ceiling (part)

ECR. floor (part)

TOTAL

D[t]

D [t]

xG0[m]

yG0[m]

zG0[m]
