Registrul De 16 biti - Xilinx


Reg. De 16 biti

Codul

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use IEEE.STD_LOGIC_ARITH.ALL;

use IEEE.STD_LOGIC_UNSIGNED.ALL;

---- Uncomment the following library declaration if instantiating

---- any Xilinx primitives in this code.

--library UNISIM;

--use UNISIM.VComponents.all;

entity reg16bit is

port (CLK, CLKEN, OE_L, CLR_L: in STD_LOGIC;

D: in std_logic_vector (15 downto 0) ;

Q: out std_logic_vector (15 downto 0)) ;

end reg16bit;

architecture regl6bit_beh of reg16bit is

signal CLR, OE: STD_LOGIC;

signal IQ: STD_LOGIC_VECTOR (15 downto 0);

begin

process (CLK, CLR_L, CLR, OE_L, OE, IQ)

begin



CLR <= not CLR_L;

OE <= OE_L;

if (CLR = '1') then IQ <= (others => '0') ;

elsif (CLK'event and CLK='1') then

if (CLKEN = '1') then IQ <= D;

end if;

end if;

if OE = '1' then Q <= IQ;

else Q <= (others => 'Z');-- --ie;ire tristate

end if;

end process;

end architecture;

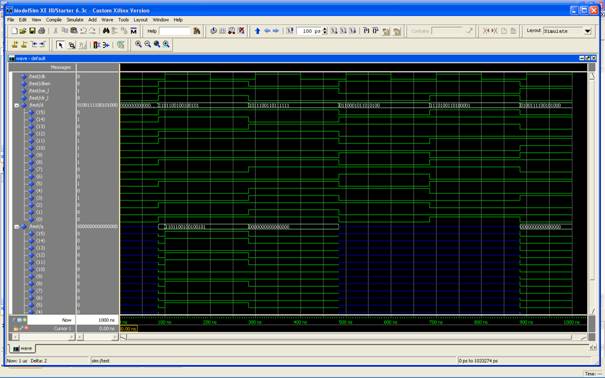

Afisarea rezultatelor simularii
